Products Plastic drop bottles and Containers

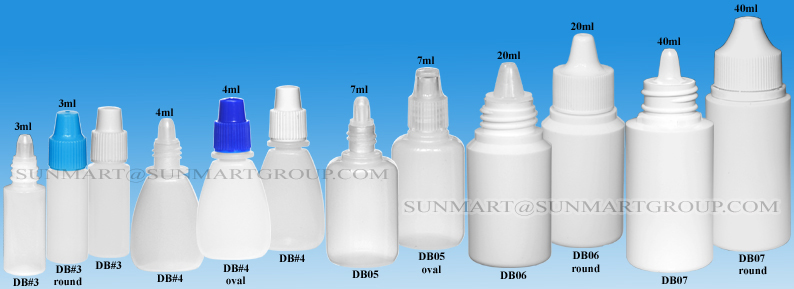

The HDPE drop bottles DB#3, DB#4, and DB05 for Peppermints
DB#3 3ml round with PE tip and PP cap
Dimension: dia. 13.4mm X height 48mm
DB#4 4ml oval with PE tip and PP cap
Dimension: width 22.7mm X thick 12mm X height 53mm
DB#5 7ml oval with PE tip and PP cap
Dimension: width 22.6mm X thick 15.9mm X height 53.4mm
DB06 drop PE bottle 20ml in round neck: 19/410 with PE tip + PP cap
Dimension: dia. 27mm X total height 70mm
DB07 drop PE bottle 40ml in round neck: 20/410 with PE tip + PP tamper evident cap
Dimension: dia. 29.5mm X total height 92mm

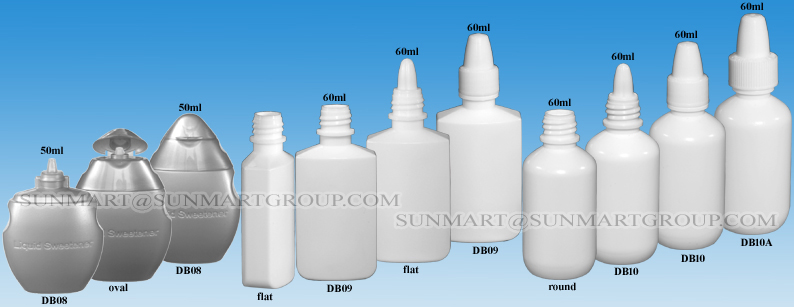

DB08 drop PE bottle 50ml in oval neck: 13mm with PE tip + PP flip top cap in snap-on
Dimension: width 52.5mm X thickness 30.2mm X total height 71.3mm
(It is private moulds, just for references only)

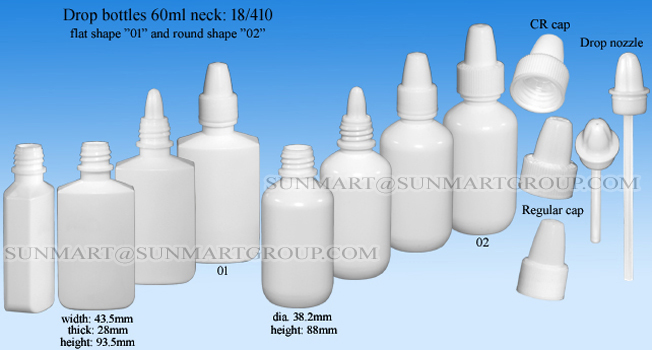

DB09 drop PE bottle 60ml in flat neck: 18/410 with PE tip + PP extra cap
Dimension: width 43.5mm X thickness 28mm X total height 93.5mm
DB09A drop PE bottle 60ml in flat neck: 18/410 with PE tip + Child-Resistant cap
Dimension: width 43.5mm X thickness 28mm X total height 95mm
DB10 drop PE bottle 60ml in round neck: 18/410 with PE tip + PP extra cap
Dimension: dia. 38.2mm X total height 88mm
DB10A drop PE bottle 60ml in round neck: 18/410 with PE tip + Child-Resistant cap
Dimension: dia. 38.2mm X total height 89mm
For DB09 and DB10, the squeezing spray can be in drop and stream, mist status because of the magic nozzle tip structure, also can be used for nasal spray purpose.
There are two types of caps, one is PP extra cap for DB09 and DB10 and the other is Child-Resistant cap for DB09A and DB10A.

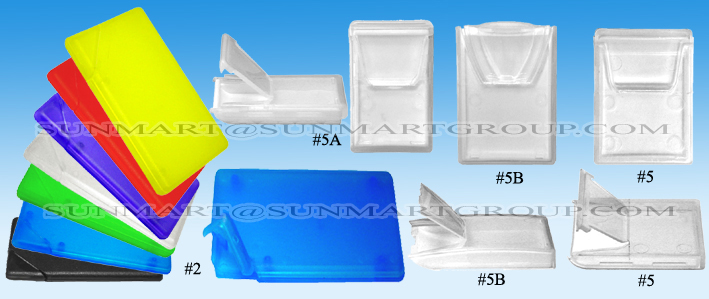

PP Containers #5, #2 for Peppermints
#5 - width 33.5mm X long 45.3mm
#5A - width 30.4mm X long 46.9mm
#5B - width 33.3mm X long 48mm
#2 - width 47.7mm X long 78mm
Automobile Fragrance Fans
The colors of the fans can be made as per your requirements.
Sizes: Width - "W", Height - "H", Thickness - "T"
(For AF-01/02/04/05/06, there is a plastic clip to be equipped. Please refer to AF-00)
AF-01 W: 45mm, H: 75mm, T: 38mm
AF-02 W: 45mm, H: 75mm, T: 38mm
AF-03 dia. 50mm, T: 24mm
AF-04 W: 50mm, H: 66.5mm, T: 20.5mm
AF-05 W: 70.3mm, H: 69.6mm, T: 19mm
AF-06 W: 40mm, H: 79.6mm, T: 20mm
AF-07 dia. 63mm, T: 20.5mm
AF-08 PVC bottle 10ml Neck: 13/410 with PP cap + PE liner
Plastic and Metal Jars
Different jars can be made as per your samples or drawings.

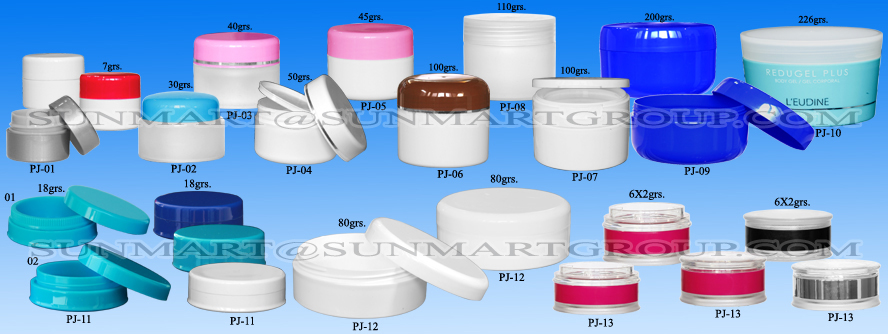

PJ-01 PP container 7grs. 32/400 in double-wall bottle
Size: dia. 35mm X height 27.5mm
PJ-02 PP container 30grs. 48/400 with a lid
Size: dia. 57mm X height 42mm
PJ-03 PP container 40grs. 54/400 with a lid
Size: dia. 55mm X height 39mm
PJ-04 PP container 50grs. 53/400 with a lid
Size: dia. 55mm X height 39mm
PJ-05 PP container 45grs. 56/400 with a lid
Size: dia. 58mm X height 42mm
PJ-06 PP container 100grs. 63/400 with a lid
Size: dia. 63.5mm X height 60mm
PJ-07 PP container 100grs. 66/400 with a flip cap + lid
Size: dia. 68mm X height 55.5mm
PJ-08 PP container 110grs. 62/400 with a lid
Size: dia. 63mm X height 55mm
PJ-09 PP jar 200grs. 83/400 in single-wall
Size: dia. 85mm X height 53mm
PJ-10 PP double-wall container 226grs. in cone shape 87/400
Size: dia. 85~95mm X height 64mm
PJ-11 PP container 18grs. 47/400 double-wall with the ring for snap-on cap
Size: dia. 52-53mm X height 18mm
01 - the ring to be screwed on the bottles neck, to be used for filling process, just push down the cap on the ring, it is snap-on, to save more assembling costs than by screw-on;
02 C it is easier for the consumers to screw the cap with the ring off or on the bottle.
PJ-12 PP container 80grs. 77/400 in single-wall
Size: dia. 80mm X height 32.5mm
PJ-13 Acrylic double-end containers in clear and frosted finish 6X2grs. with ABS connecting ring + 2 PE liners
Size: dia. 46.6mm X height 24.3mm
Please note: PJ-11 and PJ-13 are specially manufactured for one of our customers, not for sales, just for your references.

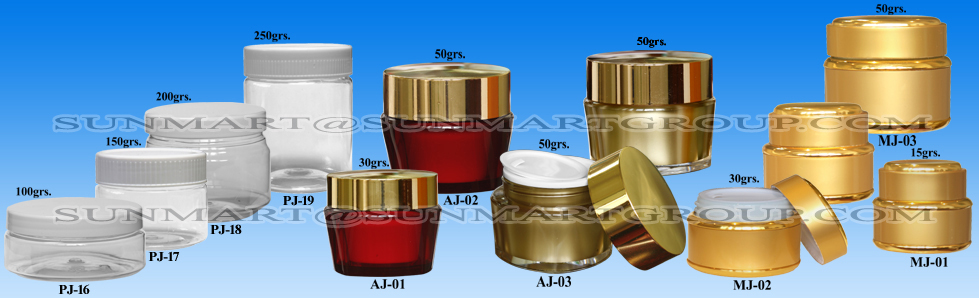

PJ-16 PET jar 100grs. 69/400 with the PP cap smooth
Size: dia. 74mm X height 39.5mm
PJ-17 PET jar 105grs. 60/400 with the PP cap ribbed
Size: dia. 63mm X height 57mm
PJ-18 PET jar 200grs. 70/400 with the PP cap smooth
Size: dia. 75mm X height 64.6mm
PJ-19 PET jar 250grs. 70/400 with the PP cap ribbed
Size: dia. 72.4mm X height 79mm
AJ-01 Acrylic rhombic shaped jar 30grs. 46/400 with inner PP tank + lid UV coated ABS cap
Size: dia. 55mm X height 48mm
AJ-02 Acrylic rhombic shaped jar 50grs. 54/400 with inner PP tank + lid UV coated ABS cap
Size: dia. 64.6mm X height 53mm
AJ-03 Acrylic rhombic shaped jar 50grs. 54/400 with inner PP tank + lid UV coated ABS cap/inner acrylic container
Size: dia. 64.6mm X height 53mm
MJ-01 20grs. 35/400 Metal Sheathed
MJ-02 30grs. 42/400 Metal Sheathed
MJ-03 50grs. 53/400 Metal sheathed
