HDPE bottles with Plastic Overcaps

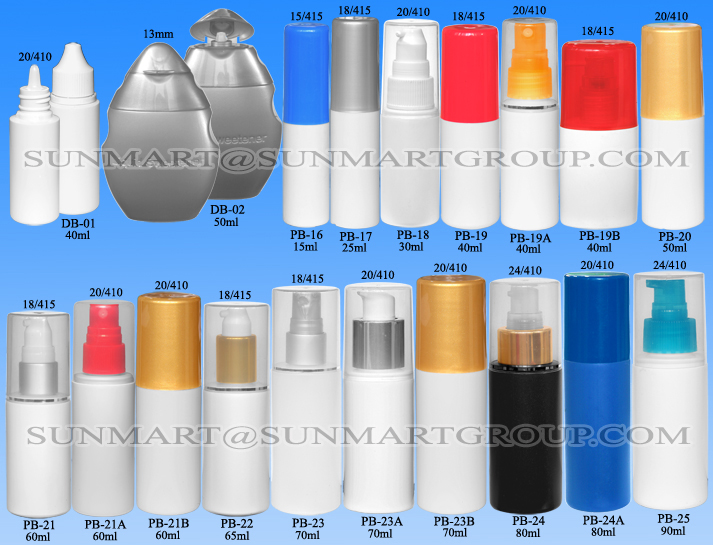

- DB-01 Drop PE bottle 40ml Neck: 20/410 with PE tip + PP tamper evident cap

dimension: dia. 29.5mm X total height 92mm

- DB-02 Drop PE bottle 50ml Neck: 13mm with PE tip + PP flip top cap in snap-on

dimension: width 52.5mm X thickness 30.2mm X total height 71.3mm

(it is private moulds, just for references only)

- PB-16 PE bottle 15ml Neck: 15/415 with PP overcap

dimension: dia. 22.2mm X total height 95.6mm

- PB-17 PE bottle 25ml Neck: 18/415 with PP overcap

dimension: dia. 24.5mm X total height 107mm

- PB-18 PE bottle 30ml Neck: 20/410 with PP overcap

dimension: dia. 30mm X total height 104mm

- PB-19 PE bottle 40ml Neck: 18/415 with PP overcap

dimension: dia. 32mm X total height 103mm

- PB-19A PE bottle 40ml Neck: 20/410 with PP overcap

dimension: dia. 30mm X total height 114mm

- PB-19B PE oval bottle 40ml Neck: 18/415 with PP overcap

dimension: width 39.7mm X thickness 26.4mm X total height 99mm

- PB-20 PE bottle 50ml Neck: 20/410 with PP overcap

dimension: dia. 36mm X total height 111.5mm

- PB-21 PE bottle 60ml Neck: 18/415 with PP overcap

dimension: dia. 36mm X total height 110mm

- PB-21A PE bottle 60ml Neck: 20/410 with PP overcap

dimension: dia. 33.6mm X total height 116.3mm

- PB-21B PE bottle 60ml Neck: 20/410 with PP overcap

dimension: dia. 36.4mm X total height 120.3mm

- PB-22 PE bottle 65ml Neck: 18/415 with PP overcap

dimension: dia. 36mm X total height 116mm

- PB-23 PE bottle 70ml Neck: 18/415 with PP overcap

dimension: dia. 36mm X total height 131mm

- PB-23A PE bottle 70ml Neck: 20/410 with PP overcap

dimension: dia. 36mm X total height 120mm

- PB-23B PE bottle 70ml Neck: 20/410 with PP overcap

dimension: dia. 36mm X total height 130.6mm

- PB-24 PE bottle 80ml Neck: 24/410 with PP overcap

dimension: dia. 38.3mm X total height 129mm

- PB-24A PE bottle 80ml Neck: 20/410 with PP overcap

dimension: dia. 35.6mm X total height 132mm

- PB-25 PE bottle 90ml Neck: 24/410 with PP overcap

dimension: dia. 39mm X total height 130mm

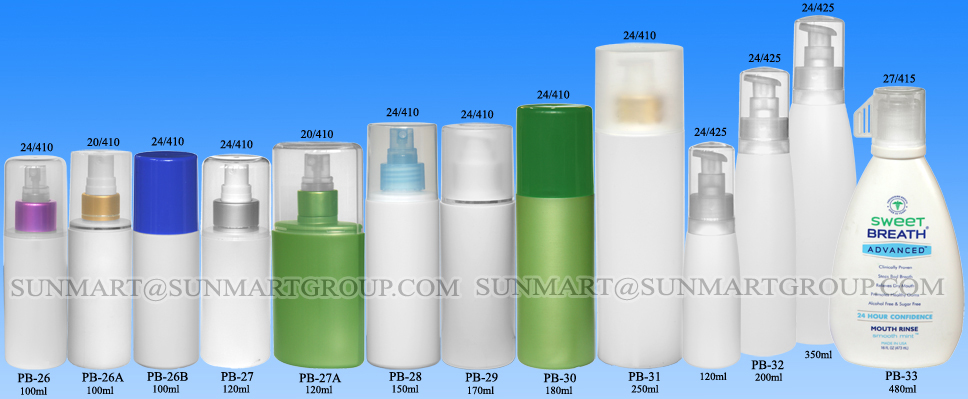

- PB-26 PE bottle 100ml Neck: 24/410 with PP overcap

dimension: dia. 43mm X total height 135mm

- PB-26A PE bottle 100ml Neck: 20/410 with PP overcap

dimension: dia. 39mm X total height 143mm

- PB-26B PE bottle 100ml Neck: 24/410 with PP overcap

dimension: dia. 40mm X total height 141mm

- PB-27 PE bottle 120ml Neck: 24/410 with PP overcap

dimension: dia. 42.5mm X total height 135mm

- PB-27A PE oval bottle 120ml Neck: 20/410 with PP overcap

dimension: width 56mm X thickness 35mm X total height 148mm

- PB-28 PE bottle 150ml Neck: 24/410 with PP overcap

dimension: dia. 45mm X total height 160mm

- PB-29 PE bottle 170ml Neck: 24/410 with PP overcap

dimension: dia. 46mm X total height 160mm

- PB-30 PE bottle 180ml Neck: 24/410 with PP overcap

dimension: dia. 45.6mm X total height 177mm

- PB-31 PE bottle 250ml Neck: 24/410 with PP overcap

dimension: dia. 47.6mm X total height 212mm

- PB32 PE bottles neck: 24/416 with the cream pump double-wall closure dosage: 0.4ml with PS overcap

- 120ml

- 200ml

- 350ml

- PB-33 PE oval bottle for mouth rinse 480ml Neck: 27/415 with PP flip top cap 27/415 ribbed + graduate 20ml

dimension: width 97mm X thickness 53mm X total height 201mm

PET bottles with plastic overcaps

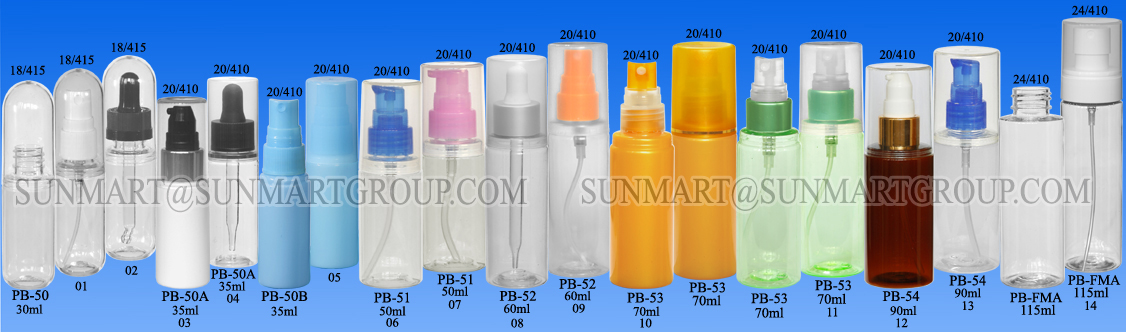

- PB-50 PET clear bottle 30ml Neck: 18/410 with K-resin overcap

dimension: dia. 29.6mm X height 73.2mm (total height 105mm)

- PB-50A PET clear bottle 35ml Neck: 20/410 with PP overcap

dimension: dia. 30mm X height 74mm (total height 104mm)

- PB-50B PET clear bottle 35ml Neck: 20/410 with PP overcap

dimension: dia. 28mm X height 78.5mm (total height 105.5mm)

- PB-51 PET clear bottle 50ml Neck: 20/410 with PP overcap

dimension: dia. 33.3mm X height 88mm (total height 116mm)

- PB-52 PET clear bottle 60ml Neck: 20/410 with PP overcap

dimension: dia. 33mm X height 103mm (total height 132mm)

- PB-53 PET clear bottle 70ml Neck: 20/410 with PP overcap

dimension: dia. 33.5mm X height 103mm (total height 131.5mm)

- PB-54 PET clear bottle 90ml Neck: 20/410 with K-resin overcap

dimension: dia. 40.7mm X height 92mm (total height 123mm)

- PB-FMA PET clear bottle 115ml flat shoulder Neck: 24/410 without caps

dimension: dia. 38.2mm X height 123mm (total height 153mm)

- the fine mist spray pump FMA-01 24/410 double-wall closure dosage: 0.12ml with PP overcap

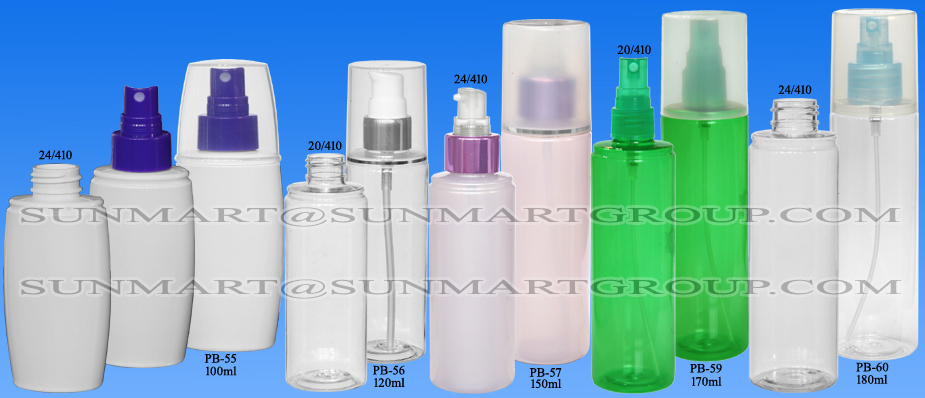

- PB-55 PET clear oval bottle 100ml Neck: 24/410 with PP overcap

dimension: width 49.6mm X thickness 33.5mm X total height 148mm

- PB-56 PET clear bottle 120ml Neck: 20/410 with PP overcap

dimension: dia. 40.3mm X height 124.5mm (total height 153mm)

- PB-57 PET clear bottle 150ml Neck: 24/410 with PP overcap

dimension: dia. 45mm X height 130mm (total height 173.5mm)

- PB-59 PET clear bottle 170ml Neck: 20/410 with PP overcap

dimension: dia. 44mm X height 147mm (total height 175mm)

- PB-60 PET clear bottle 180ml Neck: 24/410 with PP overcap

dimension: dia. 45mm X height 147.6mm (total height 175mm)

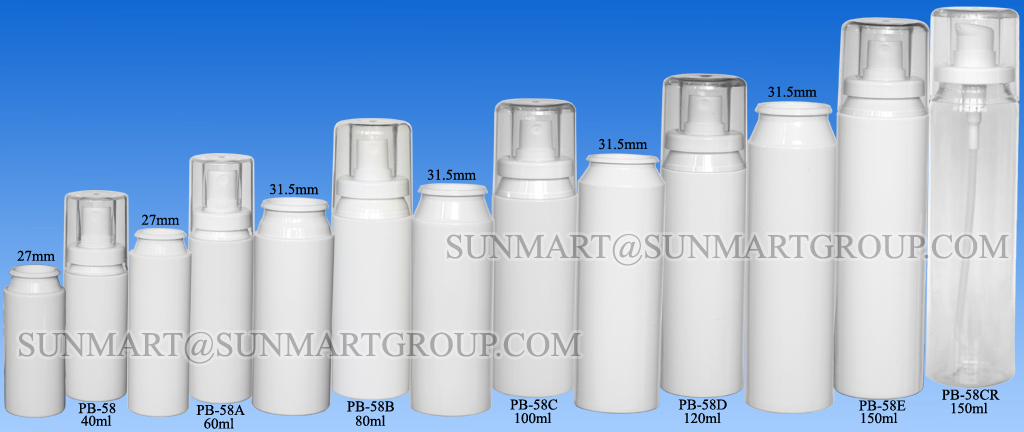

- PB-58 PET clear bottle 40ml neck: 27mm with K-resin overcap

dimension: dia. 32.5mm X height 75mm (total height 103mm)

- the fine mist spray pump FMB-08B 27mm dosage: 0.12ml in snap-on

- PB-58A PET clear bottle 60ml neck: 27mm with K-resin overcap

dimension: dia. 32.5mm X height 92mm (total height 120mm)

- the fine mist spray pump FMB-08B 27mm dosage: 0.12ml in snap-on

- PB-58B PET clear bottle 80ml neck: 31.5mm with K-resin overcap

dimension: dia. 38.5mm X height 107mm (total height 136.5mm)

- the fine mist spray pump FMB-05A dosage: 0.12ml in snap-on

- PB-58C PET clear bottle 100ml neck: 31.5mm with K-resin overcap

dimension: dia. 38.5mm X height 116mm (total height 145.5mm)

- the fine mist spray pump FMB-05A dosage: 0.12ml in snap-on

- PB-58D PET clear bottle 120ml neck: 31.5mm with K-resin overcap

dimension: dia. 38.2mm X height 132mm (total height 162mm)

- the fine mist spray pump FMB-05A dosage: 0.12ml in snap-on

- PB-58E PET clear bottle 150ml neck: 31.5mm with K-resin overcap

dimension: dia. 38.2mm X height 160mm (total height 190.5mm)

- the fine mist spray pump FMB-05A dosage: 0.12ml in snap-on

- PB-58CR PET clear bottle 150ml neck: 31.5mm with K-resin overcap

dimension: dia. 38.2mm X height 160mm (total height 190.5mm)

- the treatment pumps FMB-05CR dosage: 0.20ml in snap-on

- this PB-58F series is newly developed and the PET bottles replace the regular aluminium cans neck: 1"

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml with non-touch spring inside the pump body, without touch liquid spray by the spring. This pump is well received by all our customers.

- PB-58FAa PET clear round bottle 100ml neck: 31mm (1") with PP short overcap "05" dia. 35.5mm X 28.5mm

dimension: dia. 35mm X height 135mm (total height 155mm)

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml non-touch spring inside the pump body in snap-on

- PB-58FAb PET clear round bottle 100ml neck: 31mm (1") with PP flat top overcap "06" dia. 34.5mm X 39mm

dimension: dia. 35mm X height 135mm (total height 164mm)

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml non-touch spring inside the pump body in snap-on

- PB-58FAc PET clear round bottle 100ml neck: 31mm (1") with PP dome top overcap "07" dia. 34mm X 43mm

dimension: dia. 35mm X height 135mm (total height 169mm)

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml non-touch spring inside the pump body in snap-on

- PB-58FBb PET clear drum shaped bottle 150ml neck: 31mm (1") PP flat top overcap "12" dia. 34.5mm X 39mm

dimension: dia. 35mm X height 150mm (total height 184mm)

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml non-touch spring inside the pump body in snap-on

- PB-58FBc PET clear drum shaped bottle 150ml neck: 31mm (1") PP dome top overcap "13" dia. 34mm X 43mm

dimension: dia. 35mm X height 150mm (total height 188mm)

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml non-touch spring inside the pump body in snap-on

- PB-58FCb PET clear round bottle 200ml neck: 31mm (1") PP flat top overcap "18" dia. 34.5mm X 39mm

dimension: dia. 35mm X height 185mm (total height 218mm)

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml non-touch spring inside the pump body in snap-on

- PB-58FCc PET clear round bottle 200ml neck: 31mm (1") PP dome top overcap "19/20" dia. 34mm X 43mm

dimension: dia. 35mm X height 185mm (total height 223mm)

- the fine mist spray pump FMB06A (metal aerosol cup 1") dosage: 0.15ml non-touch spring inside the pump body in snap-on

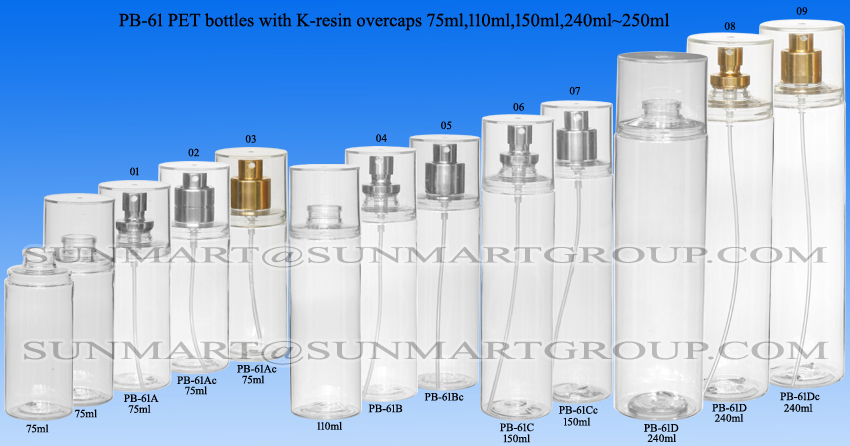

- the neck of this PB-61 series is 20mm in crimp-on version, to be fitted with our FMB-02 (metal ferrules + metal sheathed actuators)

or FMB-03 (metal ferrules + metal sheathed actuators + metal collars)

- PB-61A PET clear cylinder bottle 75ml neck: 20mm with K-resin overcap dia. 39.8mm X 37.5mm without pumps

the bottle + cap's dimension: dia. 40mm X height 92.6mm (total height with the cap 113.7mm)

- PB-61B PET clear cylinder bottle 110ml neck: 20mm with K-resin overcap dia. 39.8mm X 37.5mm without pumps

the bottle + cap's dimension: dia. 40mm X height 117mm (total height with the cap 138mm)

- PB-61C PET clear cylinder bottle 150ml neck: 20mm with K-resin overcap dia. 39.8mm X 37.5mm without pumps

the bottle + cap's dimension: dia. 40mm X height 142.4mm (total height with the cap 163mm)

- PB-61D PET clear cylinder bottle 240~250ml neck: 20mm with K-resin overcap dia. 46.5mm X 40mm without pump

the bottle + cap's dimension: dia. 47.3mm X height 169mm (total height with the cap 193mm)

- the crimp-on spray pumps to be fitted with the above bottles in PB-61 series:

- the crimp-on spray pumps FMB-02 (metal ferrules + metal sheathed actuators) dia. 20mm dosages: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

- the crimp-on spray pumps FMB-03 (metal ferrules + metal sheathed actuators + metal collars) dia. 20mm dosages: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

- PB-34 HDPE bottle 100ml with Flip top cap 24mm in snap-on

(the bottle's dimension: width 67mm X thickness 39mm X height 115mm)

- PB-35 HDPE bottle 100ml with PE Tip and PP Ball Cap

- PB-36 HDPE bottles with Lotion Pumps L-1 (all plastic) dosage: 2.0ml

- 100ml 24/410 (the bottle's dimension: width 56.5mm X thickness 40mm X height 138mm)

- 200ml 24/410 (the bottle's dimension: width 60.8mm X thickness 49mm X height 160mm)

- 300ml 28/410 (the bottle's dimension: width 77mm X thickness 56mm X height 179mm)
