Tube (oral) Spray Pumps

- Elementary ABC

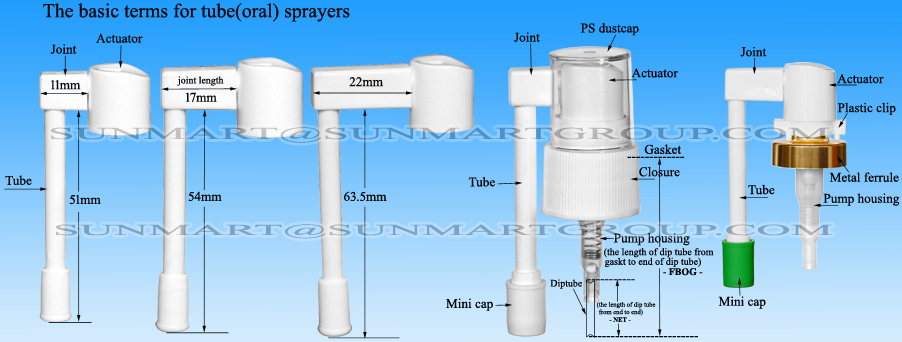

Please view carefully the basic terms for the tube (oral) sprayers that enables you to get the fundamental knowledge about our PH series.

- There are only three joint lengths: 11mm, 17mm, and 22mm;

- The mini cap can be only fitted with PH04;

- There are PS dustcaps to be fitted with 18/410, 18/415, 20/410, 20/415, 22/415, 24/410, 24/415 of PH04, PH06, PH09, PH10;

- The item numbers of the actuators for PH07: "P07", PH12: "P12", PH04: "P04", PH06: "P06", PH09: "P09", PH10: "P10"

- For the different closures for our PH series, there are ribbed and smooth walls available.

- Actually, the length of dip tubes for all our pumps to be measured in "NET" and "FBOG", but the most popular one is the latter "FBOG".

You can inform us the technical drawings of your bottles or bottle samples that enables us to calculate the length of "FBOG".

b. Oral Sprayers and Regular Spray Pumps

- Tube (oral) Spray Pumps

- PH07 series Tube Actuator: "P07" - Length: 17.5mm with a plastic protective cover

1. PH07 (all plastic)

"01", "02", "03", "04", "05", "06" closures: 18/410, 18/415, 20/410, 20/415 ribbed or smooth closure dosage: 0.12ml, 0.15ml

"07", "08", "09", "10" closures: 22/400, 22/415, 24/410, 24/415 ribbed or smooth closure dosage: 0.12ml, 0.15ml

2. PH07M (metal sheathed closure) with a plastic protective cover

"11", "12" closures: 18/410, 18/415, 20/410, 20/415 dosage: 0.12ml, 0.15ml

"11", "12" closures: 22/400, 22/415, 24/410, 24/415 dosage: 0.12ml, 0.15ml

3. PH07C Tube length: 17.5mm with a plastic protective cover

"14", "15", "16" Ferrules' dia. 18mm, 20mm dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

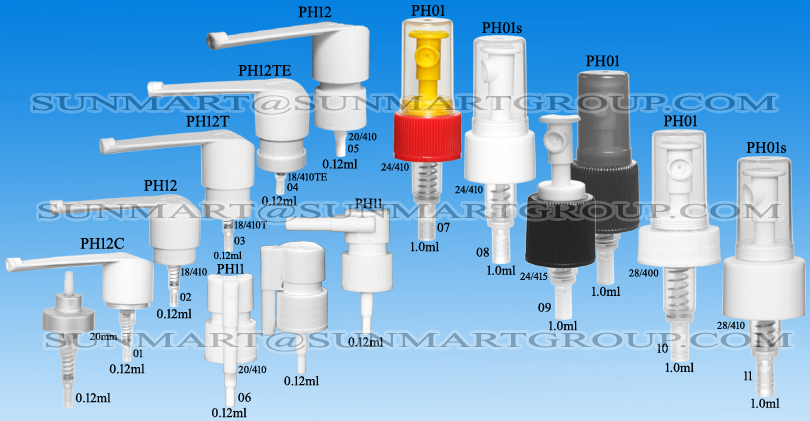

- PH12, PH01 series

4. PH12C Tube Actuator: "P12" - Length: 45.5mm

"01" Ferrules' dia. 18mm, 20mm dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

5. PH12 "02" 18/410 ribbed closure dosage: 0.10ml, 0.12ml

6. PH12 "03" 18/410T flanged ribbed closure dosage: 0.10ml, 0.12ml

7. PH12 "04" 18/410TE tamper evident closure dosage: 0.10ml, 0.12ml

8. PH12 "02" 20/410 ribbed closure dosage: 0.10ml, 0.12ml

9. PH11 "06" 20/410 ribbed closure dosage: 0.10ml, 0.12ml Tube Actuator: turnable 38mm

10. PH01 regular spray pumps dosage: 1.0ml with PP and PS dustcap

- closure: 20/410

"07", "08", "09", "10" closures: 24/410, 24/415, 28/400

"11" closure: 28/410

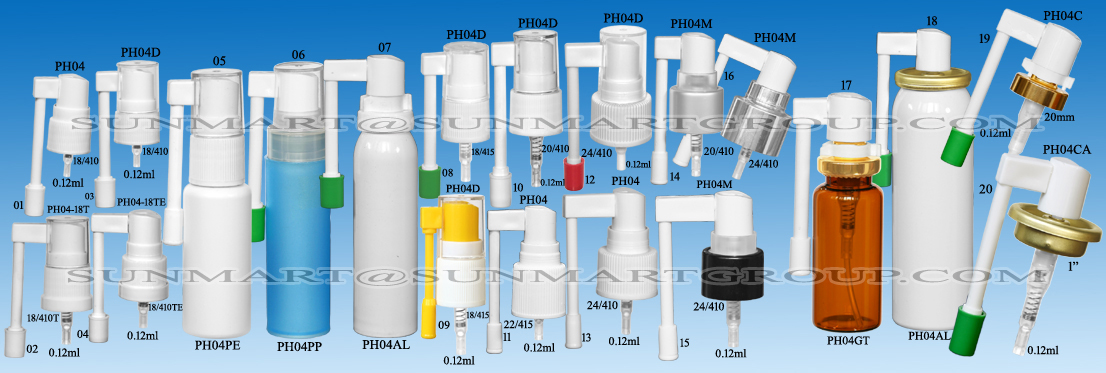

- PH04 series Tube Actuator: "P04" - Length: 51mm, 54mm, 63.5mm

11. PH04, PH04D (all plastic)

"01", "08", "09", "10" closures: 18/410, 18/415, 20/410, 20/415 dosage: 0.10ml, 0.12ml

"11", "12", "13" closures: 22/415, 24/410 dosage: 0.10ml, 0.12ml

- If the PS dustcap of "02", "03", "08" be fitted to, the additional cost has to be charged.

- If a plastic locking clip be required, the additional charge has to be charged.

12. PH04-18T (all plastic) "02" flanged closure: 18/410T dosage: 0.10ml, 0.12ml with PS dustcap

13. PH04-18TE (all plastic) "04" tamper evident closure: 18/410TE dosage: 0.10ml, 0.12ml

14. PH04M (metal sheathed closures) dosage: 0.10ml, 0.12ml

"14" closures: 18/410, 18/415, 20/410, 20/415

"15" closures: 22/415, 24/410

15. PH04C (in crimp-on version) dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

"19" Ferrules' sizes: dia. 15mm, 18mm, 20mm

16. PH04CA (in metal aerosol ferrule) dosage: 0.10ml, 0.12ml

"20" Ferrules' sizes: 1" (31.8mm)

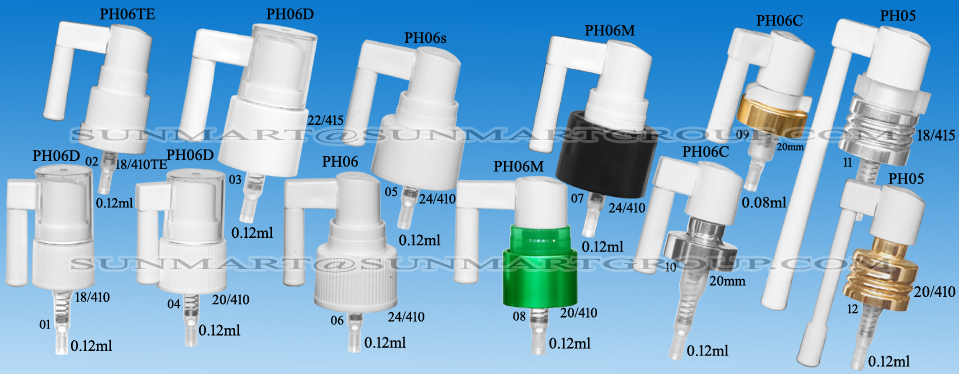

- PH06 series

17. PH06, PH06D (all plastic) Tube Actuator: "P06" - Length: 25mm dosage: 0.10ml, 0.12ml

"01", "04" closures: 18/410, 18/415, 20/410, 20/415

"03", "05", "06" closures: 22/415, 24/410

- If the PS dustcap of "01", "03", "04" be fitted to, the additional cost has to be charged.

18. PH06TE (all plastic) 18/410 (DIN18) in tamper evident closure dosage: 0.10ml, 0.12ml

18. PH06M (metal sheathed closures)

"08" closures: 18/410, 18/415, 20/410, 20/415

"07" closures: 22/415, 24/410

- If the PS dustcap of "03" be fitted to, the additional cost has to be charged.

19. PH06C (crimp-on version) dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

"09", "10" Ferrules' sizes: dia. 15mm, 18mm, 20mm

- If a plastic locking clip be required, the additional charge has to be charged.

- PH05 series with different tube actuators: P04, P06, P07, P09, P10

20. PH05 (screwed metal closures) dosage: 0.10ml, 0.12ml

"11", "12" closures: 18/410, 18/415, 20/410, 20/415, 22/415, 24/410

The screwed metal closures with Tube actuator "P07" are 20/400, 20/410, 20/415.

- If a plastic locking clip be required, the additional charge has to be charged.

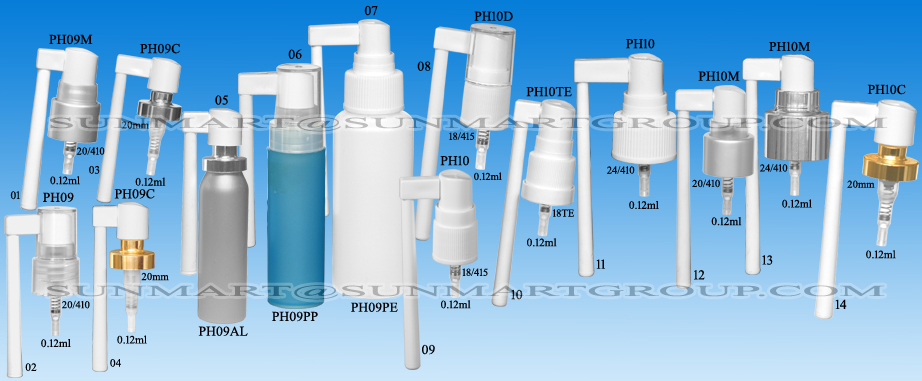

- PH09 and PH10 series

21. PH09 (all plastic) Tube Actuator: "P09" - Length: 67mm dosage: 0.10ml, 0.12ml

"02" closures: 18/410, 18/415, 20/410, 20/415, 22/415, 24/410

- If the PS dustcap of "02", "08" be fitted to, the additional cost has to be charged.

22. PH09M (metal sheathed closures) Tube length: 67mm dosage: 0.10ml, 0.12ml

"01" closures: 18/410, 18/415, 20/410, 20/415, 22/415, 24/410

- If the PS dustcap be fitted to, the additional cost has to be charged.

23. PH09C (crimp-on version) Tube length: 67mm dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

"03", "04" Ferrules' sizes: dia. 15mm, 18mm, 20mm

- If a plastic locking clip be required, the additional charge has to be charged.

24. PH10 (all plastic) Tube Actuator: "P10" - Length: 82.7mm dosage: 0.10ml, 0.12ml

"08", "09", "11" closures: 18/410, 18/415, 20/410, 20/415, 22/415, 24/410

- If the PS dustcap of "08" be fitted to, the additional cost has to be charged.

25. PH10TE (all plastic) "10" 18/410 (DIN18) in tamper evident closure dosage: 0.10ml, 0.12ml

26. PH10M (metal sheathed closures) dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

"12" closures: 18/410, 18/415, 20/410

"13" closures: 20/415, 22/415, 24/410

27. PH10C (crimp-on version) dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml, 0.12ml

"14" Ferrules' sizes: dia. 15mm, 18mm, 20mm

- If a plastic locking clip be required, the additional charge has to be charged.
