Nasal Sprayers

- Our new developed nasal sprayer NS12C 18mm snap-on with HDPE bottles 15ml, 30ml Patented by Wuxi Sunmart

- the characteristics of the Patent:

- the ribbed Cap: in child-resistant "CRC", taking off by "Push Down While Turning"

- the Actuator: in snap-in (can't be pulled out from the pump)

- the ribbed Closure: in snap-on 18mm

- the nasal sprayer NS12C 18/410 ratched closure screw-on dosage: 0.10ml, 0.12ml Actuator: N12 in snap-in with PP child-resistant overcap + plastic locking clip

- the HDPE bottle 15ml neck: 18mm snap-on

the bottle's dimension: dia. 27.6mm X height 62mm

- the HDPE bottle 30ml neck: 18mm snap-on

the bottle's dimension: dia. 31.5mm X height 73mm

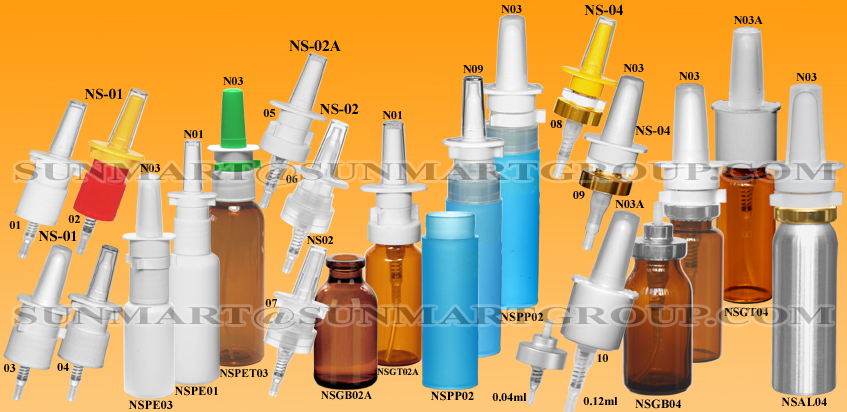

1. the nasal sprayers NS-01 in screw-on version with Actuators: "N01", "N09" with PS dustcap, "N03" with PP dustcap

- Closures: 15/410, 15/415 ribbed dosage: 0.05ml

- Closures: 17/410, 17/415, 18/410, 18/415, 20/410 ribbed dosage: 0.10ml, 0.12ml

- Closures: 24/410, 28/400 ribbed dosage: 0.10ml, 0.12ml

2. the nasal sprayers NS-02 in snap-on version with Actuators: "N01", "N09" with PS dustcap, "N03" with PP dustcap

- the PP special snap-on closure: dia. 20mm dosage: 0.10ml, 0.12ml

This special snap-on closure dia. 20mm for NS-02 is used for our PP bottles NSPP02.

3. the nasal sprayers NS-02A for standard neck in crimp-on 20mm with Actuators: "N01", "N09" with PS dustcap, "N03" with PP dustcap

- the PP standard snap-on closure: dia. 20mm dosage: 0.10ml, 0.12ml

This standard snap-on closure dia. 20mm for NS-02A is used for regular neck dia. 20mm of glass bottles and glass tubes NSGB/GT02A.

4. the nasal sprayers NS-04 in crimp-on version with PS or PP dustcap + Actuators: "N01", "N03", "N09" for NSGB/GT/AL04

- metal ferrule: dia. 15mm dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml and 0.12ml

- metal ferrule: dia. 18mm, 20mm dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml and 0.12ml

5. the actuator: "N03A" with PP dustcap of the nasal sprayers NS-04 in crimp-on version is used only for metal ferrule: dia. 20mm of NSGB/GT/AL04

- metal ferrule: dia. 20mm dosage: 0.04ml, 0.05ml, 0.08ml, 0.10ml and 0.12ml

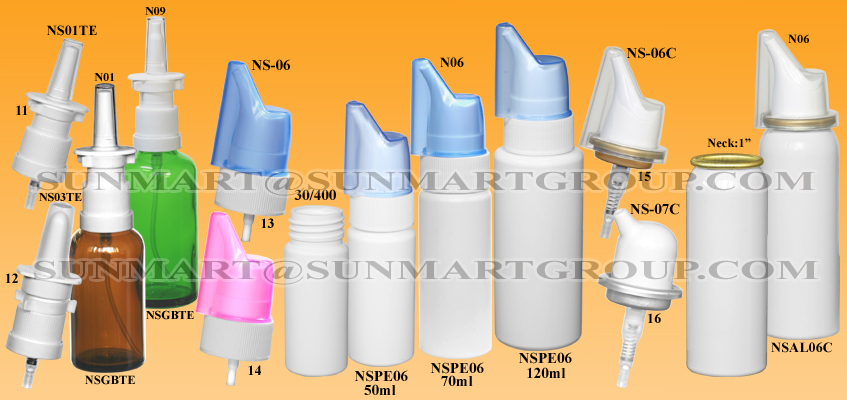

6. the nasal sprayers NS01TE 18/410 (DIN18) dosage: 0.10ml, 0.12ml with the actuator: "N01", "N09" + PS dustcap and plastic locking clip

the nasal sprayers NS03TE 18/410 (DIN18) dosage: 0.10ml, 0.12ml with the actuator: "N03" + PP dustcap and plastic locking clip

7. the nasal sprayers NS-06 in screw-on version with Actuator: "N06" + PP cap

Closure: 30/400 ribbed dosage: 0.10ml and 0.12ml

8. the nasal sprayers NS-06C in metal aerosol ferrule with Actuator: "N06" + PP cap

Ferrule's size: 1" dosage: 0.10ml and 0.12ml

9. the nasal sprayers NS-07C in aerosol metal ferrule with the actuator: "N07"

Ferrules' sizes: 1" dosage: 0.10ml and 0.12ml

10. the combination nasal spray units NSPE06

- HDPE bottle 50ml neck: 30/400 with the nasal sprayer NS-06 + PP cap

the bottle's dimension: dia. 34.3mm X height 92mm

- HDPE bottle 70ml neck: 30/400 with the nasal sprayer NS-06 + PP cap

the bottle's dimension: dia. 34.3mm X height 102mm

- HDPE bottle 120ml neck: 30/400 with the nasal sprayer NS-06 + PP cap

the bottle's dimension: dia. 41.5mm X height 124mm
