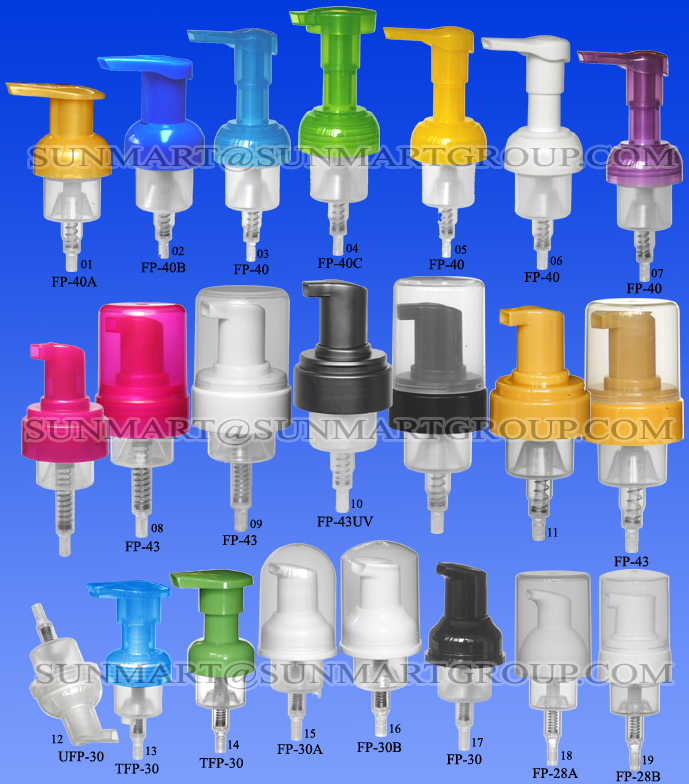

- Foaming pumps

- the foaming pumps model No. FP-40, FP-40A,B series 40/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml in Turn on/off locking system

- the foaming pumps model No. FP-43 series 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with PP overcap

- the foaming pumps model No. FP-30A, FP-30B 30/400 dosage: 0.4ml with PP overcaps

- the foaming pumps model No. UFP-30 30/400 dosage: 0.4ml without cap

This pump can be sprayed in upside down.

- the foaming pumps model No. TFP-30 30/400 dosage: 0.4ml without cap

- the foaming pumps model No. FP-28A/B 28/400 dosage: 0.3ml with PP overcaps

This actuator can be locked by turn on/off system

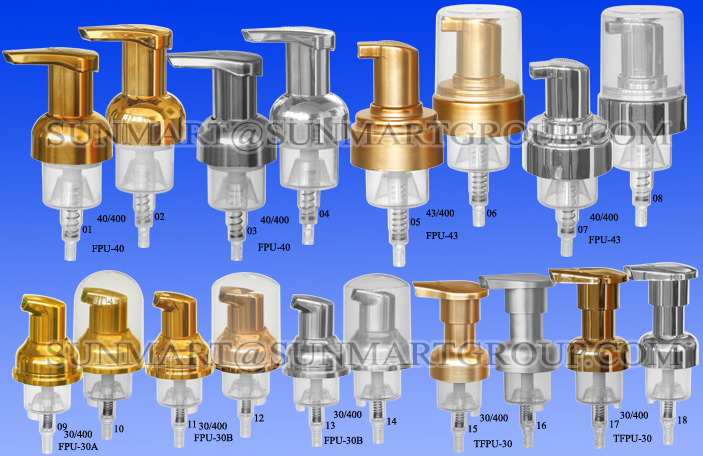

- UV coated foaming pumps

- the UV coated foaming pumps model No. FPU-40, FPU-40A,B series 40/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml in Turn on/off locking system

- the foaming pumps model No. FPU-43 series 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with PP overcap

- the foaming pumps model No. FPU-30A, FPU-30B 30/400 dosage: 0.4ml with PP overcaps

- the foaming pumps model No. TFPU-30 30/400 dosage: 0.4ml without cap

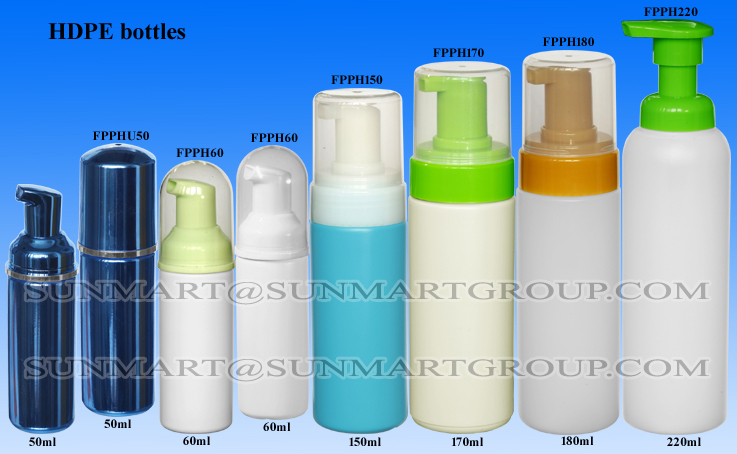

- The foaming pumps with plastic bottles

- Combination foaming spray unit FPPHU50

UV coated HDPE round bottle 50ml with UV coated foaming pump FPU-30B 30/400 dosage: 0.4ml with "oblate top" PP overcap

- the bottle's dimension: dia. 34mm X height 88.5mm (total height with the pump: 127mm)

- Combination foaming spray unit FPPH60

HDPE round bottle 60ml with foaming pump FP-30A 30/400 dosage: 0.4ml with "dome top" PP overcap

- the bottle's dimension: dia. 34.2mm X height 87.7mm (total height with the pump: 128.5mm)

- Combination foaming spray unit FPPH150

HDPE round bottle 150ml with foaming pump FP-43 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with "flat top" PP overcap

- the bottle's dimension: dia. 45.6mm X height 123mm (total height with the pump: 164.5mm)

- Combination foaming spray unit FPPH170

HDPE round bottle 170ml with foaming pump FP-43 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with "flat top" PP overcap

- Combination foaming spray unit FPPH180

HDPE round bottle 180ml with foaming pump FP-43 43/400 dosage: 1.2ml and 1.6ml with "flat top" PP overcap

- the bottle's dimension: dia. 48mm X height 135.7mm (total height with the pump: 178mm)

- Combination foaming spray unit FPPH220

HDPE round bottle 220ml with foaming pump FP-30 30/400 dosage: 0.4ml without cap

- the bottle's dimension: dia. 46.5mm X height 156mm (total height with the pump: 196mm)

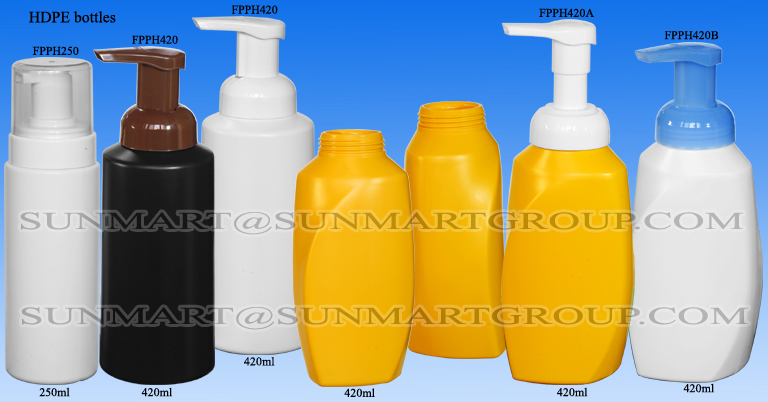

- Combination foaming spray unit FPPH250

HDPE round bottle 250ml with foaming pump FP-43 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with "flat top" PP overcap

- the bottle's dimension: dia. 50.3mm X height 157mm (total height with the pump: 198mm)

- Combination foaming spray unit FPPH420

HDPE round bottle 420ml with foaming pump FP-40 40/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml without overcaps

- the bottle's dimension: dia. 62.4mm-66.4mm X height 162mm

- Combination foaming spray unit FPPH420A

HDPE rhombus bottle 420ml with foaming pump FP-40 40/400 dosage: 1.2ml and 1.6ml without overcaps

- the bottle's dimension: width 72.5mm X thickness 62mm X height 159mm

- Combination foaming spray unit FPPH420B

HDPE rhombus bottle 420ml with foaming pump FP-40 40/400 dosage: 1.2ml and 1.6ml without overcaps

- the bottle's dimension: width 72.5mm X thickness 62mm X height 159mm

Importance: for the above FPPH250, FPPH420, FPPH420A, FPPH420B, the bottles' moulds are all our customer's private, not for selling to any other customers, just for your references.

If you have other shaped bottles, we can develop for you as per your samples or technical drawings.

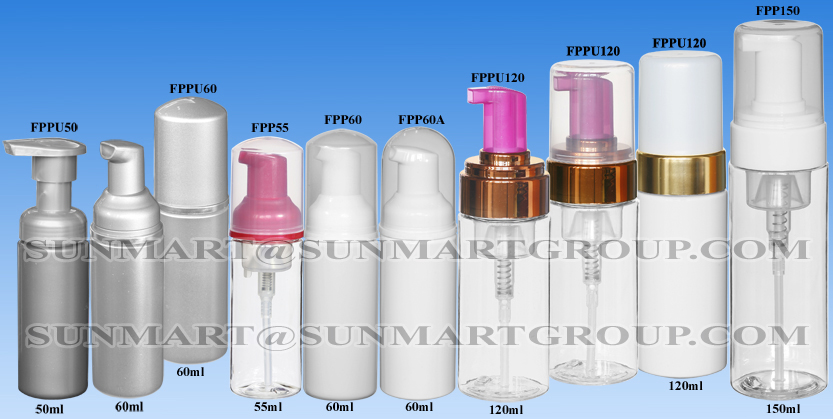

- Combination foaming spray unit FPPU50

UV coated PET round bottle 50ml with UV coated foaming pump FP-30B 30/400 dosage: 0.4ml without cap

- the bottle's dimension: dia. 34mm X height 88.8mm (total height with the pump: 130mm)

- Combination foaming spray unit FPPU60

UV coated PET round bottle 60ml with UV coated foaming pump FPU-30B 30/400 dosage: 0.4ml with UV coated "oblate top" PP overcap

- the bottle's dimension: dia. 36mm X height 90.4mm (total height with the pump: 131mm)

- Combination foaming spray unit FPP55

PET round bottle 55ml with foaming pump FP-30A/FP-30B 30/400 dosage: 0.4ml with "oblate top" PP overcap

- the bottle's dimension: dia. 34.5mm X height 89mm (total height with the pump: 127.5mm)

- Combination foaming spray unit FPP60

PET round bottle 60ml with foaming pump FP-30A/FP-30B 30/400 dosage: 0.4ml with "oblate top" PP overcap

- the bottle's dimension: dia. 36mm X height 86mm (total height with the pump: 125.5mm)

- Combination foaming spray unit FPP60A

PET round bottle 60ml with foaming pump FP-30A/FP-30B 30/400 dosage: 0.4ml with "dome top" PP overcap

- the bottle's dimension: dia. 36mm X height 90.4mm (total height with the pump: 131mm)

- Combination foaming spray unit FPPU120

PET round bottle 120ml with UV coated foaming pump FPU 43/400 dosages: 0.6~0.8ml, 1.2ml, 1.6ml with clear "flat top" PP overcap

- the bottle's dimension: dia. 48mm X height 103.5mm (total height with the pump: 146mm)

- Combination foaming spray unit FPP150

PET round bottle 150ml with FP-43 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with "flat top" PP overcap

- the bottle's dimension: dia. 48mm X height 124.5mm (total height with the pump: 166.5mm)

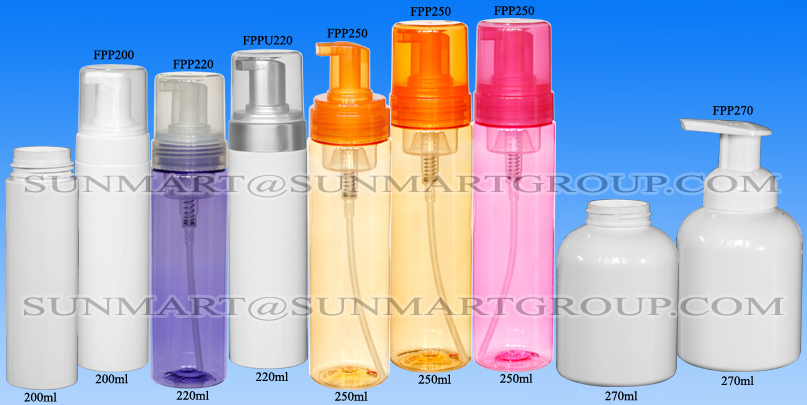

- Combination foaming spray unit FPP200

PET round bottle 200ml with foaming pump FP-43 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with "flat top" PP overcap

- the bottle's dimension: dia. 48mm X height 159mm (total height with the pump: 200.5mm)

- Combination foaming spray unit FPP220

PET round bottle 220ml~225ml with foaming pump FP-43 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with "flat top" PP overcap

- the bottle's dimension: dia. 47.8mm X height 164.5mm (total height with the pump: 206mm)

- Combination foaming spray unit FPPU220

PET round bottle 220ml~225ml with UV coated foaming pump FPU-43 43/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml with clear "flat top" PP overcap

- the bottle's dimension: dia. 47.3mm X height 165mm (total height with the pump: 206mm)

- Combination foaming spray unit FPP250

PET round bottle 250ml with foaming pump FP-43 43/400 dosage: 1.2ml and 1.6ml with "flat top" PP overcap

- the bottle's dimension: dia. 48mm X height 179mm (total height with the pump: 221mm)

- Combination foaming spray unit FPP270

PET round bottle 270ml with foaming pump FP-40A 40/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml in turn on/off locking system

- the bottle's dimension: dia. 73.5mm X height 110mm

- Combination foaming spray unit FPPU250B

PET cake shaped bottle 250ml with foaming pump FPU-40B 40/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml in Turn on/off locking system

- the bottle's dimension: width 94mm X thickness 50mm X height 97.5mm

- Combination foaming spray unit FPP250A

PET cake shaped bottle 250ml with foaming pump FP-40A 40/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml in Turn on/off locking system

- the bottle's dimension: width 94mm X thickness 50mm X height 97.5mm

- Combination foaming spray unit FPP260A, FPP260B

PET oval bottle 260ml with foaming pumps FP-40A/40B 40/400 dosages: 0.6~0.8ml, 1.2ml and 1.6ml in Turn on/off locking system

- the bottle's dimension: width 82mm X thickness 49mm X height 119mm~179mm
