Fine Mist Spray Pumps FMB series in crimp and snap-on versions:

- Dosages: 0.05ml, 0.05ml (Low Profile), 0.04ml (Low Profile), 0.07ml (in two types of the housings),

0.075ml (Low Profile), 0.08ml, 0.08ml LP (Low Profile), 0.12ml, 0.16ml, 0.23ml, 0.32ml, 0.40ml

- Colors for actuators and ferrules: on your requests

- the length of dip tube: on your requests

- Various actuators available for your options

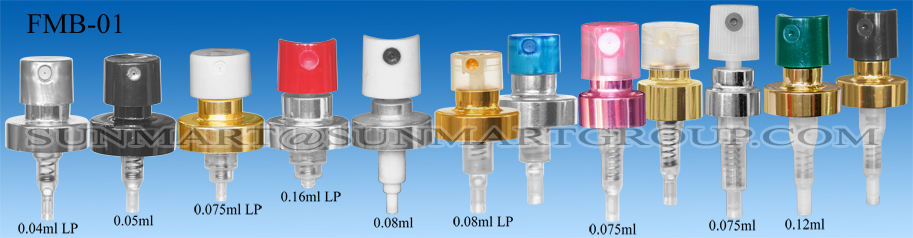

a. The crimp-on spray pumps FMB-01 (metal ferrules & plastic actuators)

- dia. 13mm, 15mm

- dia. 18mm, 20mm

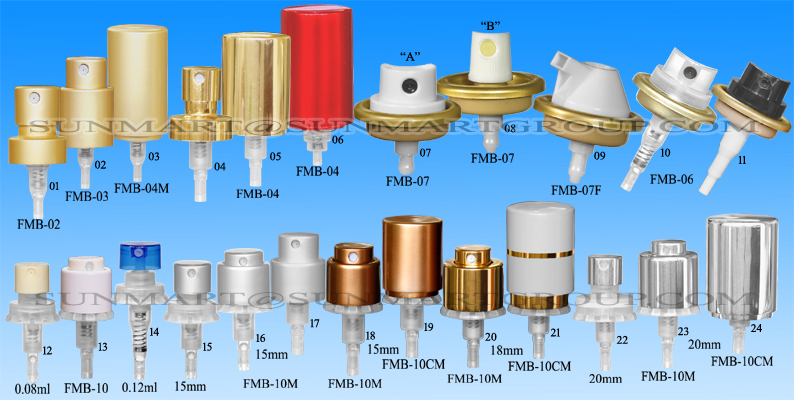

b. The crimp-on spray pumps FMB-02 (metal ferrules & metal sheathed actuators)

- dia. 13mm, 15mm

- dia. 18mm, 20mm

c. The crimp-on spray pumps FMB-03 (metal ferrules, actuators & metal collars)

- dia. 13mm, 15mm

- dia. 18mm, 20mm

d. The crimp-on spray pumps FMB-04 (metal ferrules & metal overcaps without metal collars)

- dia. 13mm, 15mm

- dia. 18mm, 20mm

e. The crimp-on spray pumps FMB-04M (metal ferrules + metal collars with metal overcaps)

- dia. 13mm, 15mm

- dia. 18mm, 20mm

f. The aerosol typed spray pumps FMB-06 (in aerosol metal ferrule)

- Spray Pump 1" dosage: 0.12ml only

g. Aerosol Pump FMB-07

- Aerosol Pump 1"

Aerosol Foaming Pump FMB-07F

- Aerosol Pump 1"

h. The crimpless spray pumps FMB-10 with metal collars dosage: 0.08ml LP, 0.12ml and plastic actuators

- dia. 15mm

- dia. 18mm

- dia. 20mm

- The crimpless spray pumps FMB-10M with metal collars dosage: 0.08ml LP, 0.12ml and metal sheathed actuators

- dia. 15mm

- dia. 18mm

- dia. 20mm

- The crimpless spray pumps FMB-10CM with metal collars dosage: 0.08ml LP, 0.12ml and metal sheathed actuators

+ a metal caps + plastic inner sleeves

- dia. 15mm

- dia. 18mm

- dia. 20mm

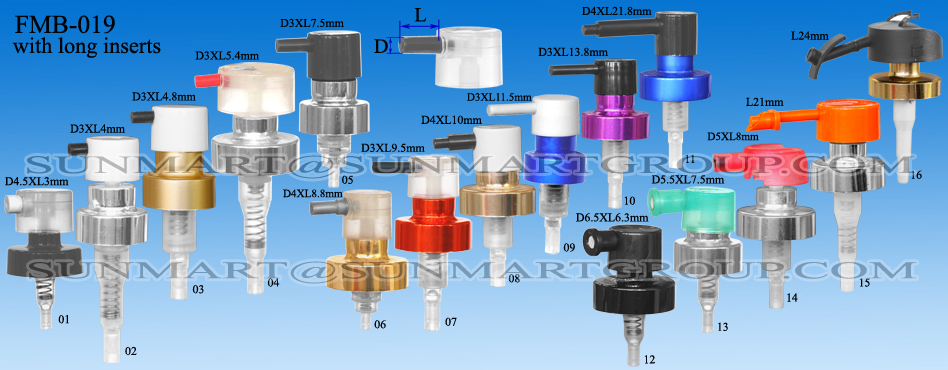

j. The crimp-on spray pumps FMB-019 (metal ferrules & plastic actuators + long inserts)

- dia. 13mm, 15mm

- dia. 18mm, 20mm

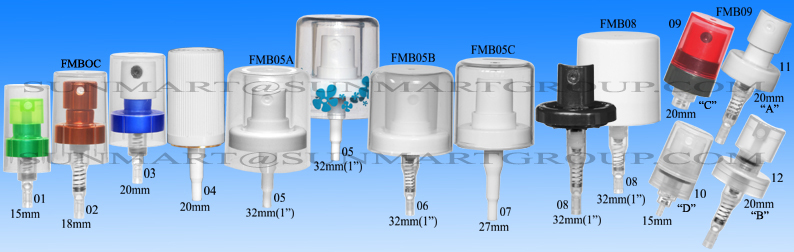

k. The snap-on spray pumps FMB05A (plastic snap-on + plastic overcap with long skirt)

(the cap's dimension: dia. 36.8mm X height 54.4mm)

- snap-on spray pump 32mm (1") dosage: 0.10ml, 0.12ml "05"

with PP overcap

with K-resin overcap

The snap-on spray pumps FMB05B (plastic snap-on + plastic overcap with short skirt)

- snap-on spray pump 32mm (1") "06" dosage: 0.10ml, 0.12ml with PP overcap

This FMB05A/B are used for special bottles' neck 32mm.

l. The snap-on spray pumps FMB05C (plastic snap-on + K-resin overcap)

- spray pump 27mm "07" dosage: 0.10ml, 0.12ml without overcaps

(the cap's dimension: dia. 32mm X height 38mm)

This FMB05C is used for special bottles' neck 27mm

m. The snap-on spray pumps FMB08 (plastic snap-on + PP overcap)

- spray pump 1" "08" dosage: 0.10ml, 0.12ml without overcaps

(the cap's dimension: dia. 34.4mm X height 39.7mm)

This FMB08 is used for aluminium bottles' neck 1".

n. The snap-on spray pumps FMB-09 in snap-on version

- FMB09-C "09" dia. 20mm dosage: 0.16ml with PP dustcap

This PP ferrule can be used for special plastic bottles neck: 20mm

- FMB09-D "10" dia. 15mm dosage: 0.075ml, 0.10ml, 0.12ml with PP dustcap

This PP ferrule can be used for special plastic bottles neck: 15mm

- FMB09-A "11" dia. 20mm (FEA20) dosage: 0.10ml, 0.12ml without caps

This PP ferrule can be used for regular glass perfume bottles neck: 20mm.

- FMB09-B "12" dia. 20mm dosage: 0.10ml, 0.12ml without caps

This PP ferrule can be used for special plastic bottles neck: 20mm
